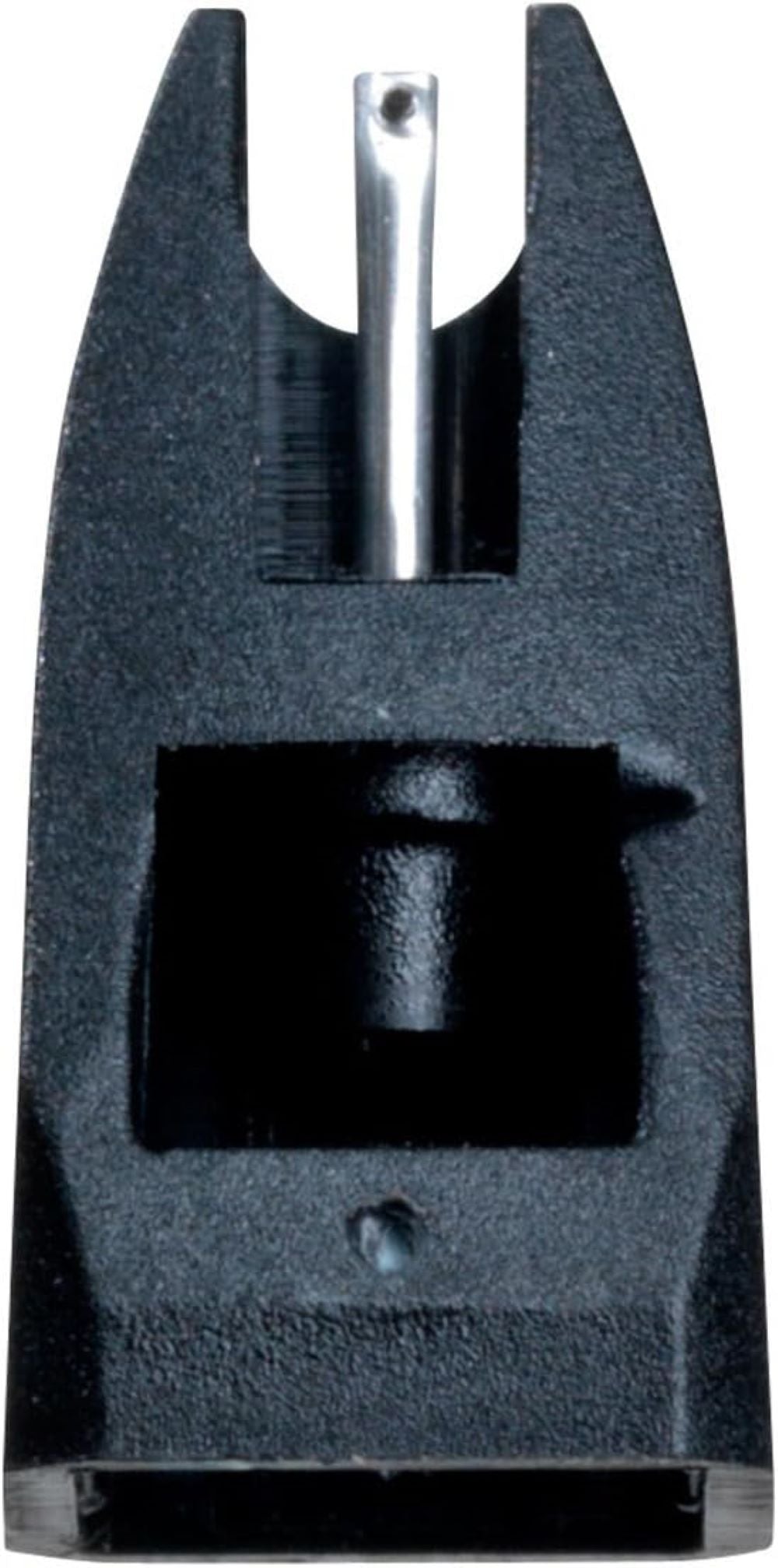

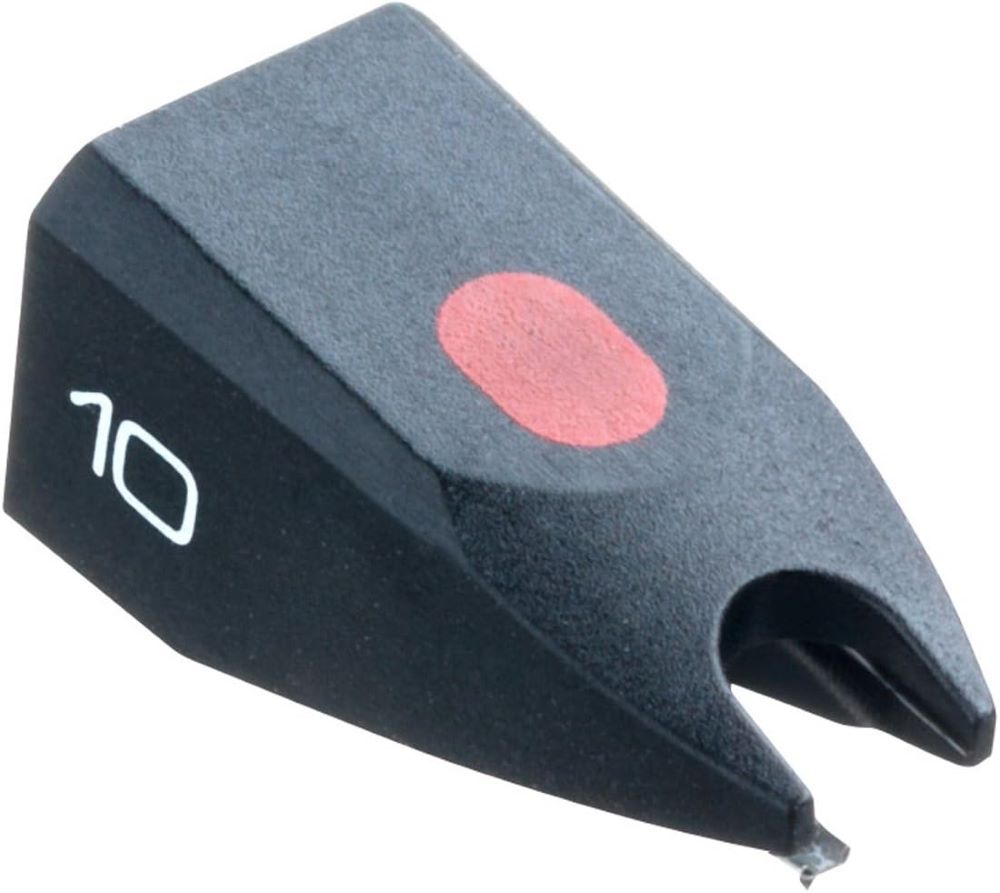

Ortofon Stylus 10

Ortofon Stylus 10

Technical specifications:

Frequency range: 20-24,000 Hz
Frequency response: 20-20,000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force*): 70 µm
Compliance, dynamic, lateral: 25 µm/mN
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 1-1.8 g (12.5-17.5 mN)
Tracking force, recommended: 1.5 g (15 mN)
Tracking angle: 20°
Stylus colour: Black

Recommended for following cartridges: Super OM 10, OM 10, OMP-mount 10, OMBulk 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, Concorde STD, TM 10H, LMB 12, SMB 12, LMA 12

*) Typical value
